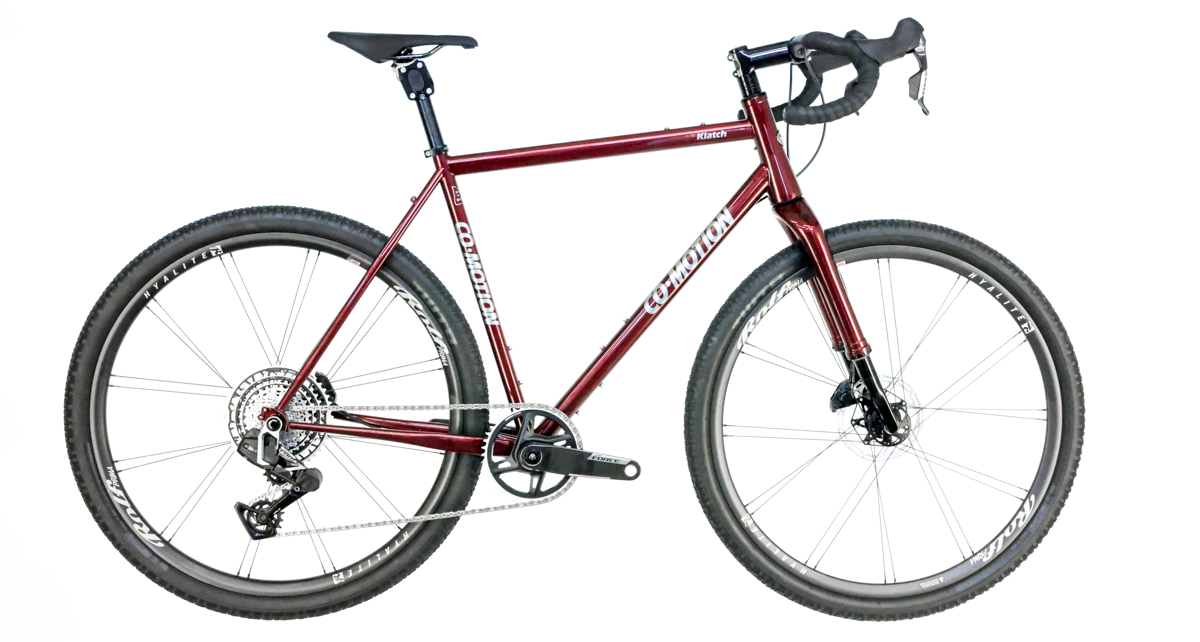

Klatch

The Klatch is a new breed of cyclocross/ gravel bike, with more versatility than a road bike and more features than a traditional cross bike. We've combined the latest Columbus OMNICRON alloy LIFE and MAX steel tubing with the Enve G Series Gravel fork to create the ultimate off-road bike. Featuring 12mm thru-axles, flat-mount disc brakes and generous tire clearance throughout. Go farther, go with confidence and be more comfortable on or off-road.

  • Optimized for 700c wheels and 35 - 50mm tires
  • OMNICROM Life and Max steel butted tubing
  • Tapered head-tube and Enve G Series Carbon Fork
  • Flat-mount disc brakes with 12mm thru-axles
  • Rear rack mounts and full fender mounts
  • Options: Internal Di2 wiring, Hydro disc brakes, Co-Pilot couplers, Pinion gearbox



Frameset starting at $2,870 Complete bike starting at $5,145
Click here to get your Co-Motion Klatch order started!



"The bike is amazing. I’ve been much more comfortable on this bike after a long ride than on my carbon bike. I can ride twice the distance and feel a whole lot less beat up." Dan C.

"I gotta say, I love this Klatch man, it’s everything that I hoped it would be, comfortable, handles well, light. The only thing that I’m not happy with is, well, it really could use a better engine. I mean seriously, this bike Deserves a better engine but it’s stuck with me." Mel G.


Drivetrain Options - What Drives You?
You've decided which Co-Motion is right for your kind of riding. Did you know we're also the leader in drivetrain options? These are the drivetrain options for the Klatch. View the in-depth gearing details below.



    Shimano GRX RX810 2x11 speed
  • Derailleur drive trains are lightweight, smooth operating and very efficient
  • Shimano's RX810 compact double 11-speed kit features wide range derailleurs with dual control shift/brake levers
  • Klatch GRX 2 x 11 kit has a 25.4" low to 121.6" high gear range



  • Pinion C1.12 Gearbox / Gates Carbon Drive
  • Revolutionary 12spd bicycle transmission from Germany
  • Extremely low maintenance, with entire gearing mechanism sealed inside
  • Mounted at the center/bottom of the frame for a balanced feel
  • Uses a lightweight single speed rear wheel
  • An impressive 600% overall gear range
  • Gates Carbon Belt Drive for grease-free bliss
  • Klatch Pinion 12 has a 17.2" low, 103.3" high gear

Gear Inches- The descriptions above refer to gear inches for comparison purposes. The term refers to the effective equivalent wheel diameter per pedal stroke. For example, if you're pedaling the Divide Pinion in first gear, each full pedal stroke will produce the equivalent of one wheel revolution of a 17.2" wheel, while the highest gear will produce the equivalent rotation of a 103.3" wheel.


Klatch Specifications

Klatch Sport Shimano 105 R7000 2x11 Kit
  • Frame: Custom bi-oval Columbus OMNICRON alloy LIFE/MAX steel double butted tubing
  • Fork: Enve G Series Gravel Fork
  • Derailleurs/Shifters: Shimano 105 R7000 11-speed/ STI dual control shift/brake levers
  • Brakes: TRP Spyre 160mm Disc
  • Headset: Cane Creek 40-series tapered
  • Drivetrain: Shimano 105 R7000 50/34t / 11-34t cassette
  • Cockpit: FSA Gossamer stem / Adventure handlebar
  • Post/Saddle: Co-Motion 27.2mm / Selle Italia X3 XP Flow
  • Wheels: Stan's Crest S2
  • Tires: WTB Riddler 700 x 45mm
Klatch Elite GRX RX810 2x11 Kit
  • Frame: Custom bi-oval Columbus OMNICRON alloy LIFE/MAX steel double butted tubing
  • Fork: Enve G Series Gravel Fork
  • Derailleurs/Shifters: Shimano RX810 11-speed/ STI dual control shift/brake levers
  • Brakes: Shimano RX810 hydraulic flat-mount disc
  • Headset: Cane Creek 110-series tapered
  • Drivetrain: Shimano RX810 48/31t / 11-34t HG800 cassette
  • Cockpit: FSA SLK stem / Adventure handlebar
  • Post/Saddle: Co-Motion 27.2mm / Selle Italia X3 XP Flow
  • Wheels: Rolf Prima Hyalite ES
  • Tires: WTB Riddler 700 x 45mm
Klatch SuperElite GRX Di2 RX815 2x11 Kit
  • Frame: Custom bi-oval Columbus OMNICRON alloy LIFE/MAX steel double butted tubing
  • Fork: Enve G Series Gravel Fork
  • Derailleurs/Shifters: Shimano GRX RX815 2x11-speed Di2 electronic / Hydraulic brake dual control levers
  • Brakes: Shimano RX810 hydraulic flat-mount disc
  • Headset: Cane Creek 110-series tapered
  • Drivetrain: Shimano RX810 48/31t / 11-34t HG800 cassette
  • Cockpit: FSA SLK stem / Adventure handlebar
  • Post/Saddle: Thomson 27.2mm / Selle Italia X3 XP Flow
  • Wheels: Rolf Prima Hyalite ES
  • Tires: WTB Riddler 700 x 45mm
Klatch Pinion C1.12 Kit
  • Derailleurs/Shifters: Pinion C1.12 Gearbox / Co-Motion Pinion 12-speed shifter
  • Brakes: Tektro RL 340 levers / TRP Spyre 160mm Disc
  • Headset: Cane Creek 110-series tapered
  • Drivetrain: Pinion crank/ Gates CenterTrack drive belt & rings
  • Cockpit: FSA SLK stem / Adventure handlebar
  • Post/Saddle: Co-Motion 27.2mm / Selle Italia X3 XP Flow
  • Wheels: Rolf Prima Hyalite CS
  • Tires: WTB Riddler 700 x 45mm

Klatch Geometry Table



Frame Size
A - Top Tube (cm)
B - Seat Tube (cm)
C - Head Tube (mm)
D - Chainstay (mm)
E - Seat Tube Angle
F - Fork Span (mm)
G - Head Tube Angle
H - Fork Rake (mm)
I - BB Drop (mm)
J - Standover (cm)
K - Wheelbase (cm)
L - Stack (mm)
M - Reach (mm)
44 cm 47 cm 50 cm 54cm 56 cm 58 cm 60 cm
51 51.5 52 54 56 57 58
41 44 47 51 53 55 57
115 115 125 145 165 185 205
432 432 432 432 432 432 432
75.5° 75° 74.5° 74.5° 74° 74° 73°
395 395 395 395 395 395 395
71° 71° 71° 71° 71.5° 71.5° 71.5°
47 47 47 47 47 47 47
72 72 72 72 72 72 72
69.1 71.4 74.2 77.4 79.1 80.7 82.6
101 101 101 103 104 105 105
543 543 555 575 594 611 630
370 370 367 381 387 393 386

Custom Paint Options


Opaque Paint Options
Also known as non-metallic, or solid colors, Opaque finishes offer a strong rich color for a classic and traditional look. A timeless paint option for your custom Co-Motion.



Metallic Paint Options
Tiny metallic or mica particles reflect light and add showroom depth and shine, making your custom Co-Motion frame stand out with a custom look.



Premium Paint Options
Pearl and Candy finishes add showroom shine or understated elegance.Choose custom combinations to add a distinctive appearance for your Co-Motion.


Decal Choices
Our available decal colors are shown above. These ink-only decals are sealed into your frame between the applied color and the final clearcoat.




Two Color Fade
Fade two colors from Top to Bottom or Front to Back for a unique finish. Choose any two colors from the same swatch of Opaque, Metallic or Pearlescent.



Panels
Painted panels on the seat-tube and down-tube add a classic look to a bike. Choose any Opaque or Metallic paint for the panels and frame/fork color.


TEAM Logos
Our TEAM Logo option is a custom reverse-masking process in which the logos are painted on the frame, as opposed to applied decals, for a bold, colorful appearance




Custom Colors
Can't find the perfect color for your new steed? Don't worry, we can match almost any car color using our Sikkens automotive paint system. Give us a call to discuss options.



Silca Frame Pump
The Impero Ultimate frame pump. This American-made pump fits perfectly under the top tube of your frame and delivers full volume and reliability.



Custom Name Decals
Add custom text like a name, quote or phrase to your bike using Black or White paint. This is a custom reverse masking and will be protected by the clear coats on top.




Accessories & Options


Custom Sizing
We have the experience, tools, materials, and knowledge to create the best fitting bicycle for a modest charge over the cost of a standard frame size.



Stainless Steel Dropouts
Add elegance and durability to your frame with these polished dropouts made from 17-4 stainless steel. Never worry about paint chipping when installing wheels.



Co-Pilot (S+S Couplers)
The incredible threaded stainless steel S+S coupler enables your Co-Motion to fit into airline checkable luggage. Option includes spanner wrench, cable splitters.



Polished Couplers
This time intensive 3 stage polishing process will bring your S&S couplers to a beautiful and durable shiny luster. Available only with the Co-Pilot couplers option.



Crater Lake Badge
Crater Lake N.P. antiqued silver head tube badge featuring Wizard Island. Crater Lake is a natural wonder, the deepest lake in the USA and one of the most pristine.



Lighthouse Badge
Lighthouse antiqued silver badge for head tubes. Reminiscent of the Heceta Head Lighthouse on the Oregon coast just 70 miles from the Co-Motion factory.



Metal Head Tube Badge
Classic Co-Motion logo metal head tube badge. These can be applied to both tapered and straight head tubes. A great classic look for your new bike.
