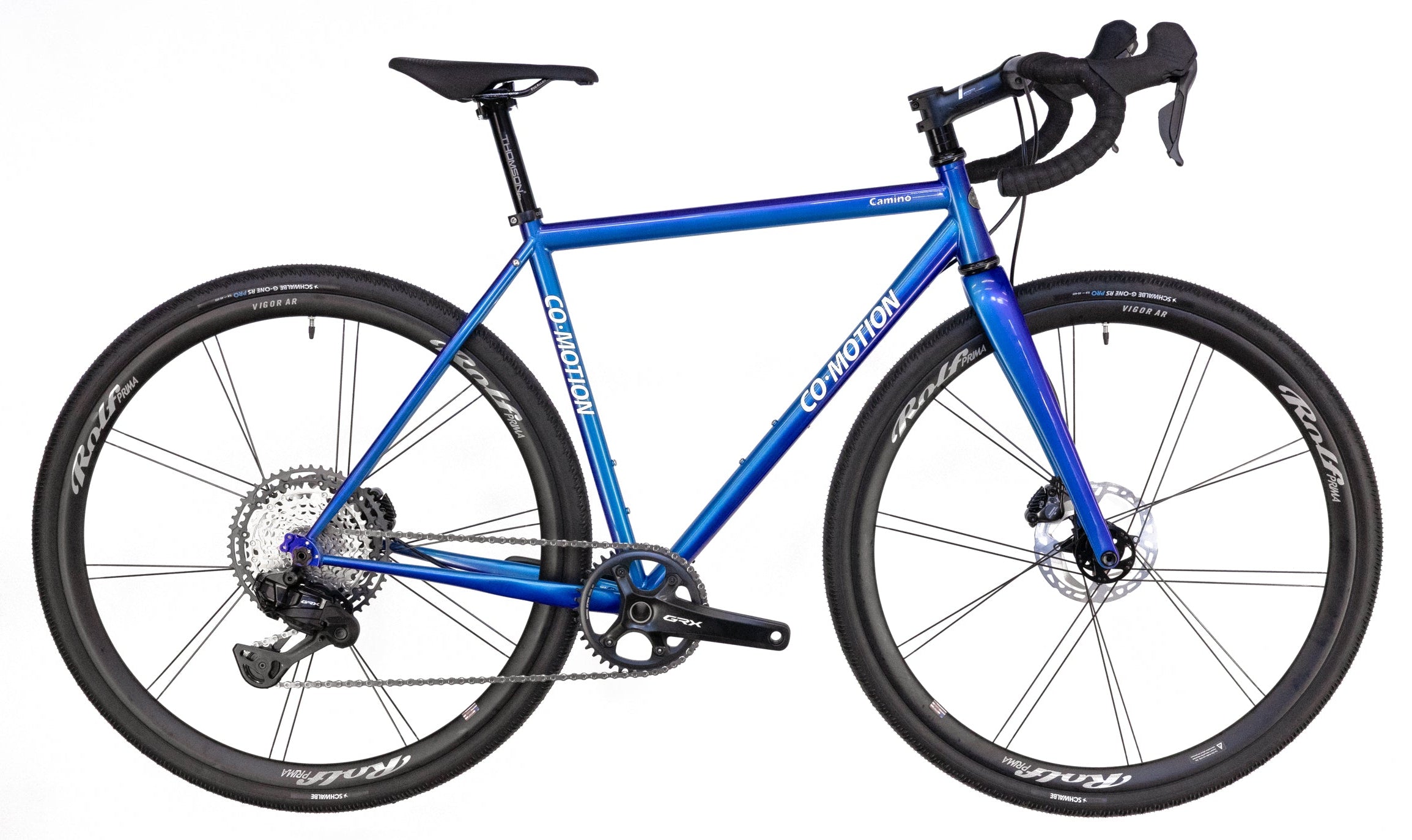

Camino

The Camino is a modern road warrior for all seasons. We've combined our custom Reynolds 853 steel tubing with a Whisky carbon road fork to incorporate 12mm axles, flat-mount disc brakes and generous tire clearance throughout. Don’t let the weather keep you from riding every day.

  • Optimized for 700c wheels and 32mm tires
  • Exclusive Reynolds air-hardening 853 steel tubing
  • Tapered head-tube and Whiskey Road+ carbon fork
  • Flat-mount disc brakes with 12mm thru-axles
  • Rear rack mounts and full fender mounts
  • Internal Di2 wiring option

[Note: If you were looking for the Co-Motion Nor'Wester, the Camino is its up-to-date closest relative]

Frameset starting at $2335.00 Complete bike starting at $3735
Click here to get your Co-Motion Camino order started!



"I am stoked to add this Camino to my quiver. The handling provides stability with purpose and because the frame geometry was customized to my needs it fits me perfectly. My other bikes are now sitting and it may be that way for a while!" Alan O.



Camino Specifications

Camino Sport Shimano 105 R7000 2x11 Kit
  • Frame:Reynolds 853 Air-hardening Double Butted Steel
  • CTX Frame Option: bi-oval main tubes with intergrated carbon seatmast
  • Fork: Whiskey No.9 Road +
  • Derailleurs/Shifters: Shimano 105 R7000 11-speed
  • Brakes: Shimano 105 R7000
  • Headset: Cane Creek 110 series tapered
  • Drivetrain: Shimano 105 50/34t crank / 11-28t cassette
  • Cockpit: FSA Gossamer stem / Omega compact handlebar
  • Post/Saddle: Co-Motion 27.2 / Selle Italia X1
  • Wheels: Hand-built with Alex ATD 490 rims / Formula hubs
  • Tires: Continental Ultra Sport II 700x32

Camino Elite Shimano Ultegra R8000 2x11 Kit
  • Frame:Reynolds 853 Air-hardening Double Butted Steel
  • CTX Frame Option: bi-oval main tubes with intergrated carbon seatmast
  • Fork: Whiskey No.9 Road +
  • Derailleurs/Shifters: Shimano Ultegra R8000 11-speed
  • Brakes: TRP Spyre 160mm Disc
  • Headset: Cane Creek 110 series tapered
  • Drivetrain: Shimano Ultegra R8000 50/34t crank / 11-28t cassette
  • Cockpit: FSA SL-K stem / Omega compact handlebar
  • Post/Saddle: Thomson 27.2 / Selle Italia SLS Kit Carbonio Flow
  • Wheels: Rolf Vigor ES Disc TA
  • Tires: Schwalbe One HS462A 700x30

Camino Super Elite Di2 Ultegra R8070 Hydro Kit
  • Frame:Reynolds 853 Air-hardening Double Butted Steel
  • CTX Frame Option: bi-oval main tubes with intergrated carbon seatmast
  • Fork: Whiskey No.9 Road +
  • Derailleurs/Shifters: Shimano Ultegra R8070 2x11-speed Di2/ Electronic shift/ hydraulic brake dual control levers
  • Brakes: Shimano R8070 Hydro Disc
  • Headset: Cane Creek 110 series tapered
  • Drivetrain: FSA SLK Light 386 carbon 50/34t / 11-28t cassette
  • Cockpit: FSA SLK stem / Omega compact handlebar
  • Post/Saddle: Thomson 27.2 / Selle Italia SLS Kit Carbonio Flow
  • Wheels: Rolf Vigor ES Disc TA / 12x100mm front, 12x142mm rear thru axles
  • Tires: Schwalbe One HS462A 700x30

Camino Geometry Table



Frame Size
A - Top Tube (cm)
B - Seat Tube (cm)
C - Head Tube (mm)
D - Chainstay (cm)
E - Seat Tube Angle
F - Fork Span (mm)
G - Head Tube Angle
H - Fork Rake (mm)
I - BB Drop (mm)
J - Standover (cm)
K - Wheelbase (cm)
L - Stack (cm)
M - Reach (cm)
46 cm 50 cm 52 cm 54 cm 56 cm 58 cm 60 cm 62 cm
51 52.5 53.5 54 55 57 58.5 59
43 47 49 51 53 55 57 59
125 125 135 145 145 165 185 205
420 420 420 420 420 420 420 420
75° 74.5° 74° 74° 73.5° 73° 73° 72.5°
383 383 383 383 383 383 383 383
71.5° 72° 72° 72° 72.5° 72.5° 72.5° 72.5°
51 51 51 51 51 51 51 51
74 74 74 74 74 74 74 74
70.2 73.6 75.0 76.1 78.2 80.1 81.8 83.4
98.8 99 100 100 100 102 103 103
547 555 561 568 576 595 615 630
362 370 371 379 374 388 397 390

Custom Paint Options


Opaque Paint Options
Also known as non-metallic, or solid colors, Opaque finishes offer a strong rich color for a classic and traditional look. A timeless paint option for your custom Co-Motion.



Metallic Paint Options
Tiny metallic or mica particles reflect light and add showroom depth and shine, making your custom Co-Motion frame stand out with a custom look.



Premium Paint Options
Pearl and Candy finishes add showroom shine or understated elegance.Choose custom combinations to add a distinctive appearance for your Co-Motion.


Decal Choices
Our available decal colors are shown above. These ink-only decals are sealed into your frame between the applied color and the final clearcoat.




Two Color Fade
Fade two colors from Top to Bottom or Front to Back for a unique finish. Choose any two colors from the same swatch of Opaque, Metallic or Pearlescent.



Panels
Painted panels on the seat-tube and down-tube add a classic look to a bike. Choose any Opaque or Metallic paint for the panels and frame/fork color.


TEAM Logos
Our TEAM Logo option is a custom reverse-masking process in which the logos are painted on the frame, as opposed to applied decals, for a bold, colorful appearance




Custom Colors
Can't find the perfect color for your new steed? Don't worry, we can match almost any car color using our Sikkens automotive paint system. Give us a call to discuss options.



Silca Frame Pump
The Impero Ultimate frame pump. This American-made pump fits perfectly under the top tube of your frame and delivers full volume and reliability.



Custom Name Decals
Add custom text like a name, quote or phrase to your bike using Black or White paint. This is a custom reverse masking and will be protected by the clear coats on top.




Accessories & Options


Custom Sizing
We have the experience, tools, materials, and knowledge to create the best fitting bicycle for a modest charge over the cost of a standard frame size.



CTX option CTX features an integrated carbon seatmast bonded from the bottom bracket shell continuing to the saddle itself, where our machined topper is elegantly painted to match.



Co-Pilot (S+S Couplers)
The incredible threaded stainless steel S+S coupler enables your Co-Motion to fit into airline checkable luggage. Option includes spanner wrench, cable splitters.



Polished Couplers
This time intensive 3 stage polishing process will bring your S&S couplers to a beautiful and durable shiny luster. Available only with the Co-Pilot couplers option.



Metal Head Tube Badge
Classic Co-Motion logo metal head tube badge. These can be applied to both tapered and straight head tubes. A great classic look for your new bike.



Lighthouse Badge
Lighthouse antiqued silver badge for straight head tubes. Reminiscent of the Heceta Head Lighthouse on the Oregon coast just 70 miles from the Co-Motion factory.



Tubus Logo Evo Rack
Tubus racks are well known for being very strong, durable, and functional. This rear rack fits tires up to 50mm with fenders, from 26" to 700c (29er) wheel sizes.




Camino Price Calculator

From $2335.00
