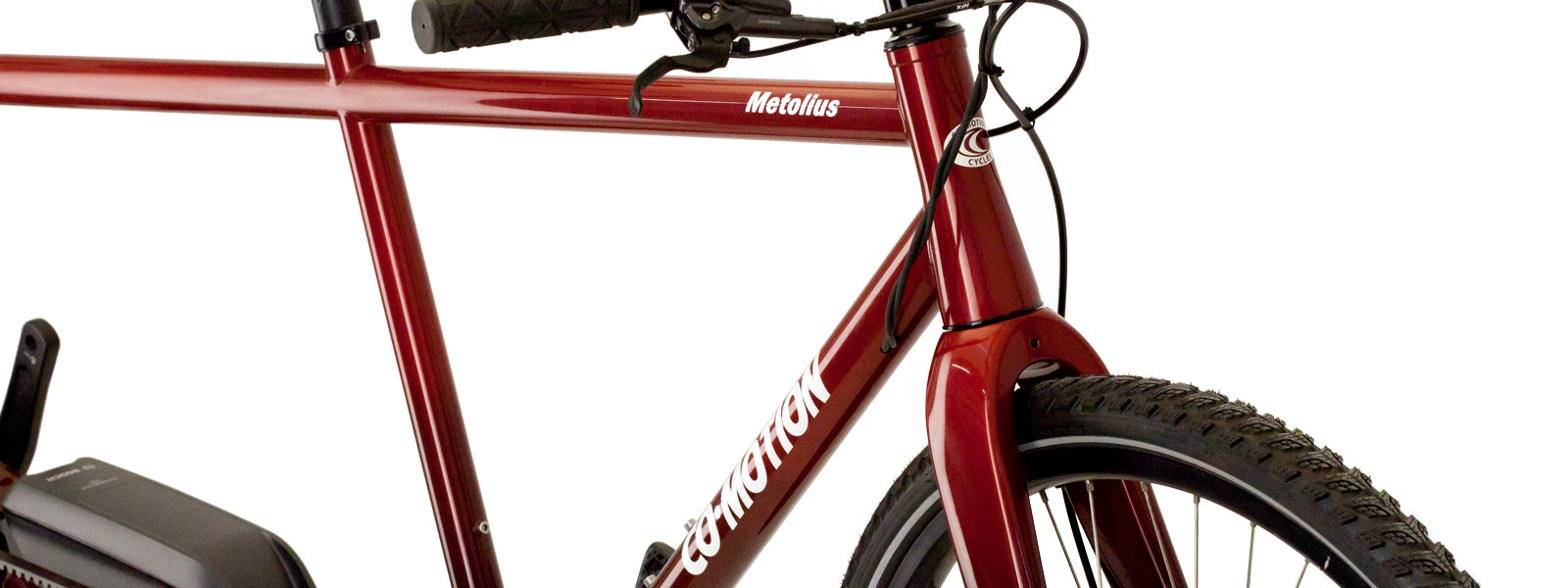

Metolius

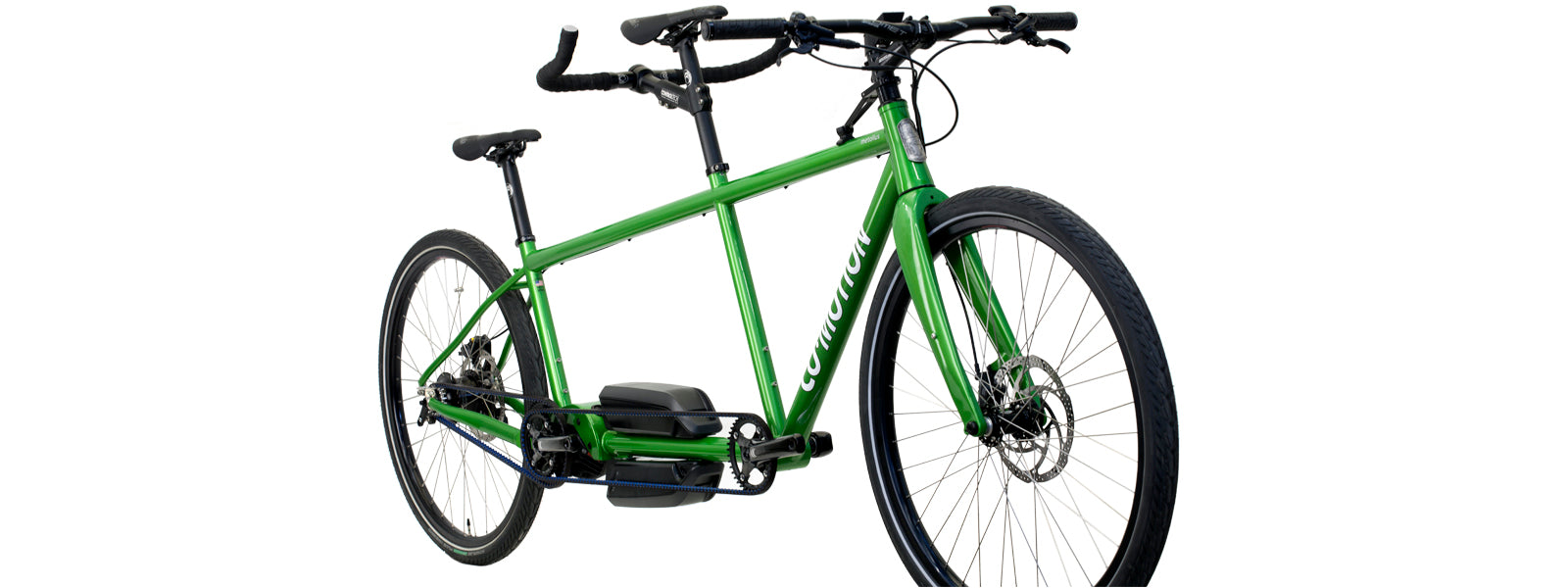

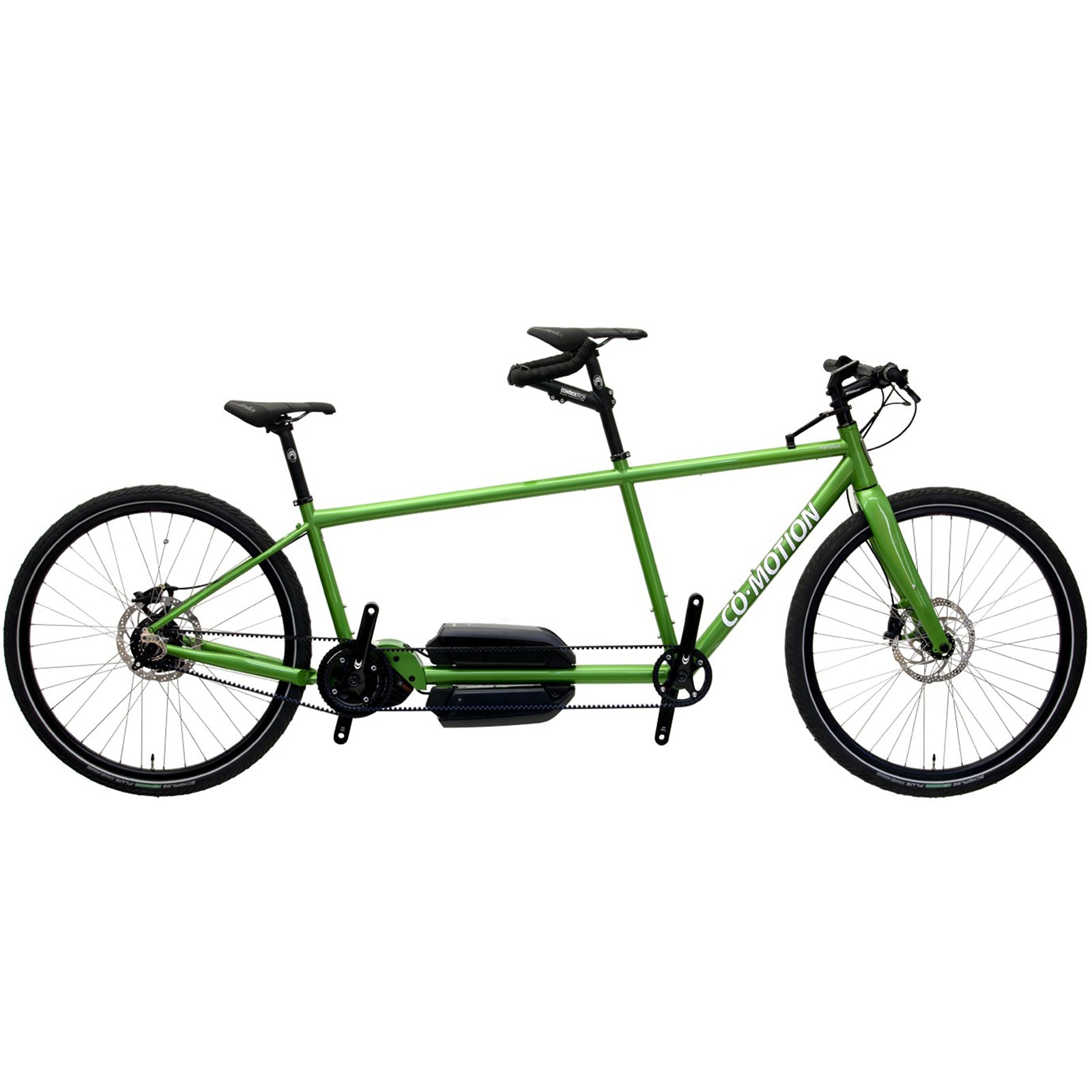

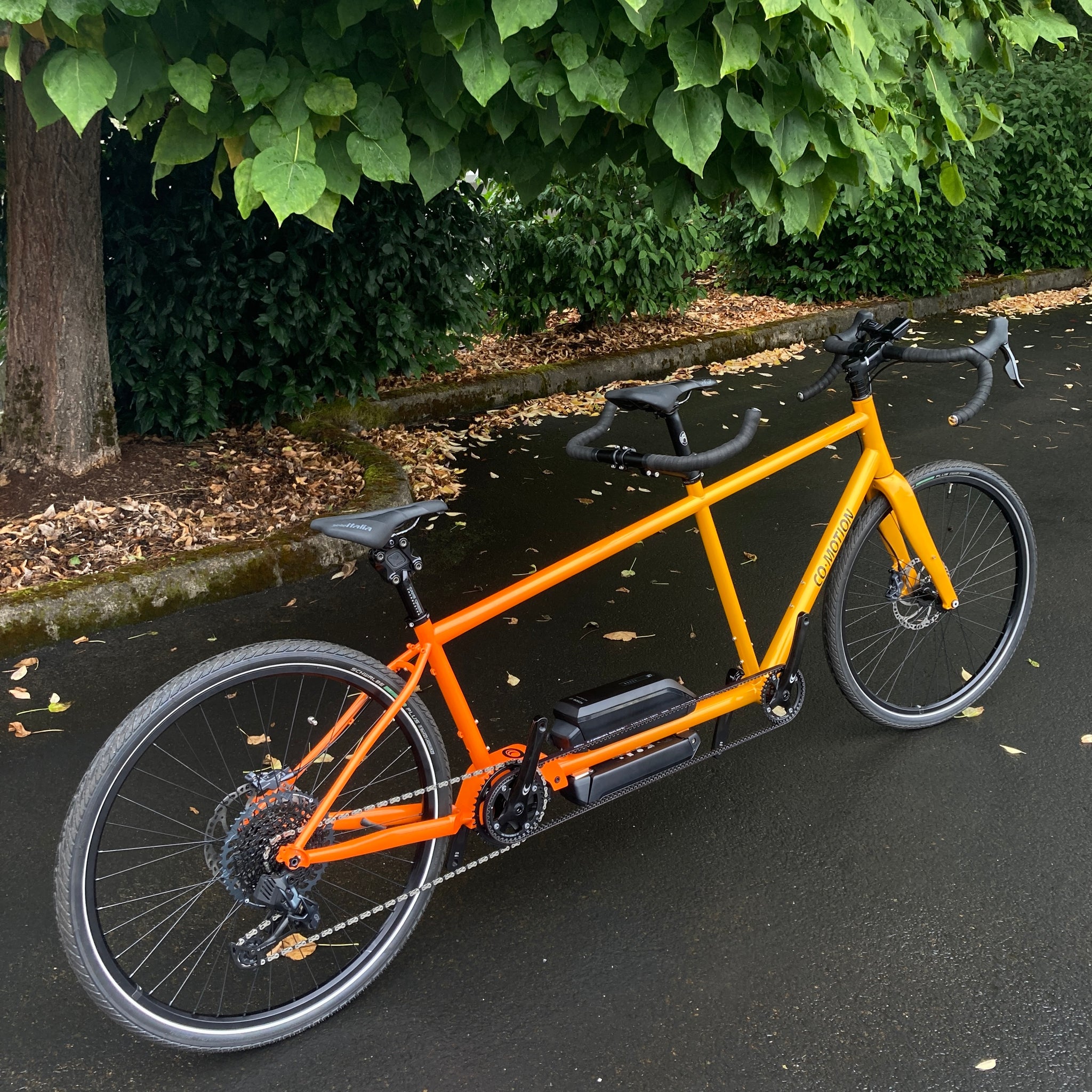

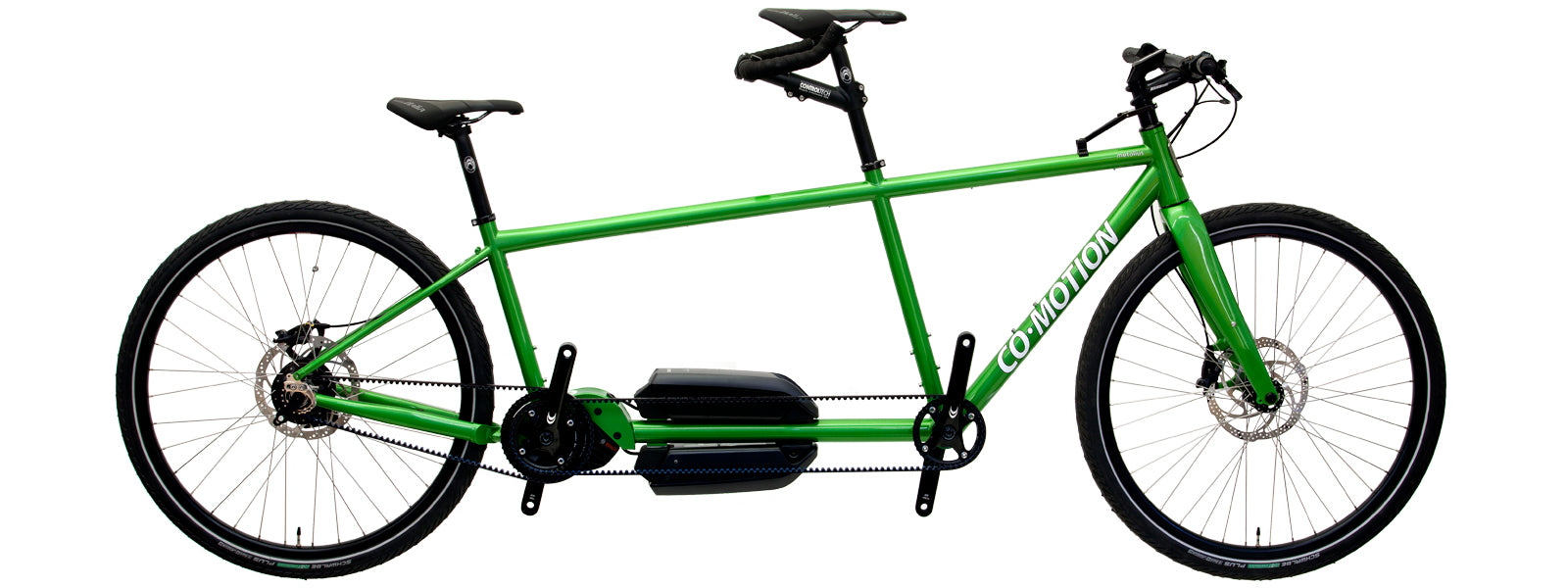

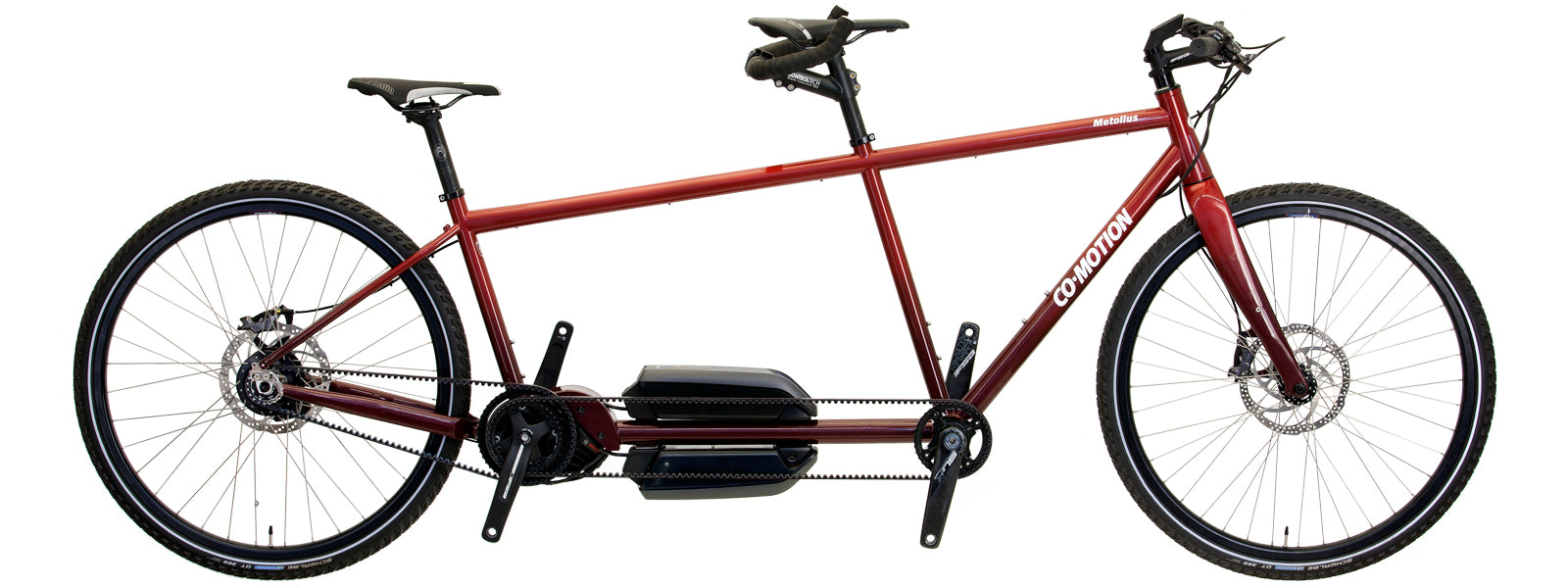

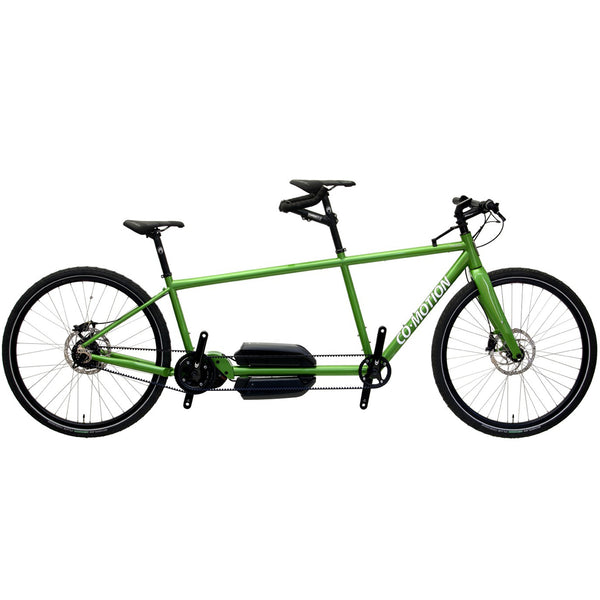

Introducing the Metolius, pronounced muh TOLL ee us, named after the national wild and scenic river in central Oregon. The Metolius is the latest culmination of Co-Motion tandem design, Bosch and Rohloff technology plus countless hours of testing and refining. This e-tandem is quite possibly the most versatile bicycle we've built to date.

Based on a similar platform as the popular Steelhead road/ gravel tandem, the Metolius utilizes the most powerful Bosch Performance pedal-assist motor integrated with an electronic shifting Rohloff internally geared hub for the ultimate riding experience. Ride farther with more comfort and less effort.

  • Optimized for 700c wheels and 32 - 45mm tires
  • Exclusive super-strength zonally-butted cro-moly tubing
  • Tapered head tube with Co-Motion 1.5” TA carbon fork
  • Powerful hydraulic disc brakes and 203mm rotors
  • Front/ Rear rack + fender mounts

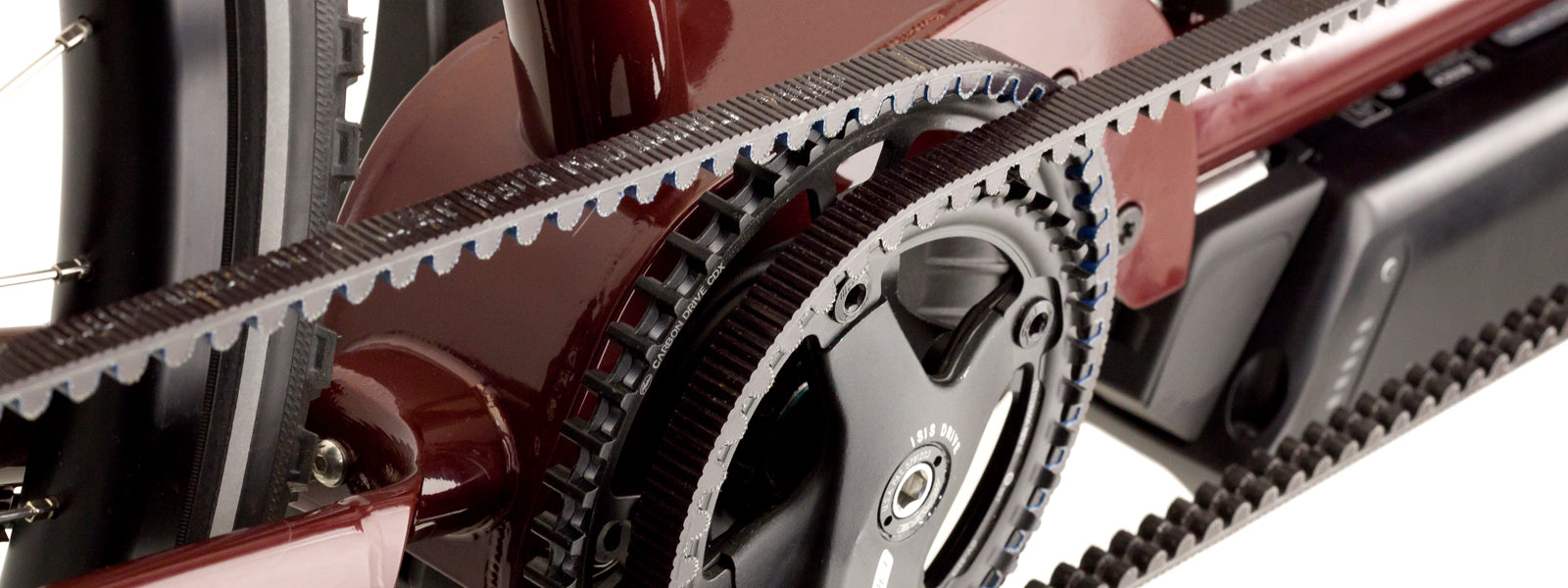

  • Dual Gates Carbon Drive
  • Bosch mid-drive with 85Nm max torque
  • Four levels of assistance up to 400%

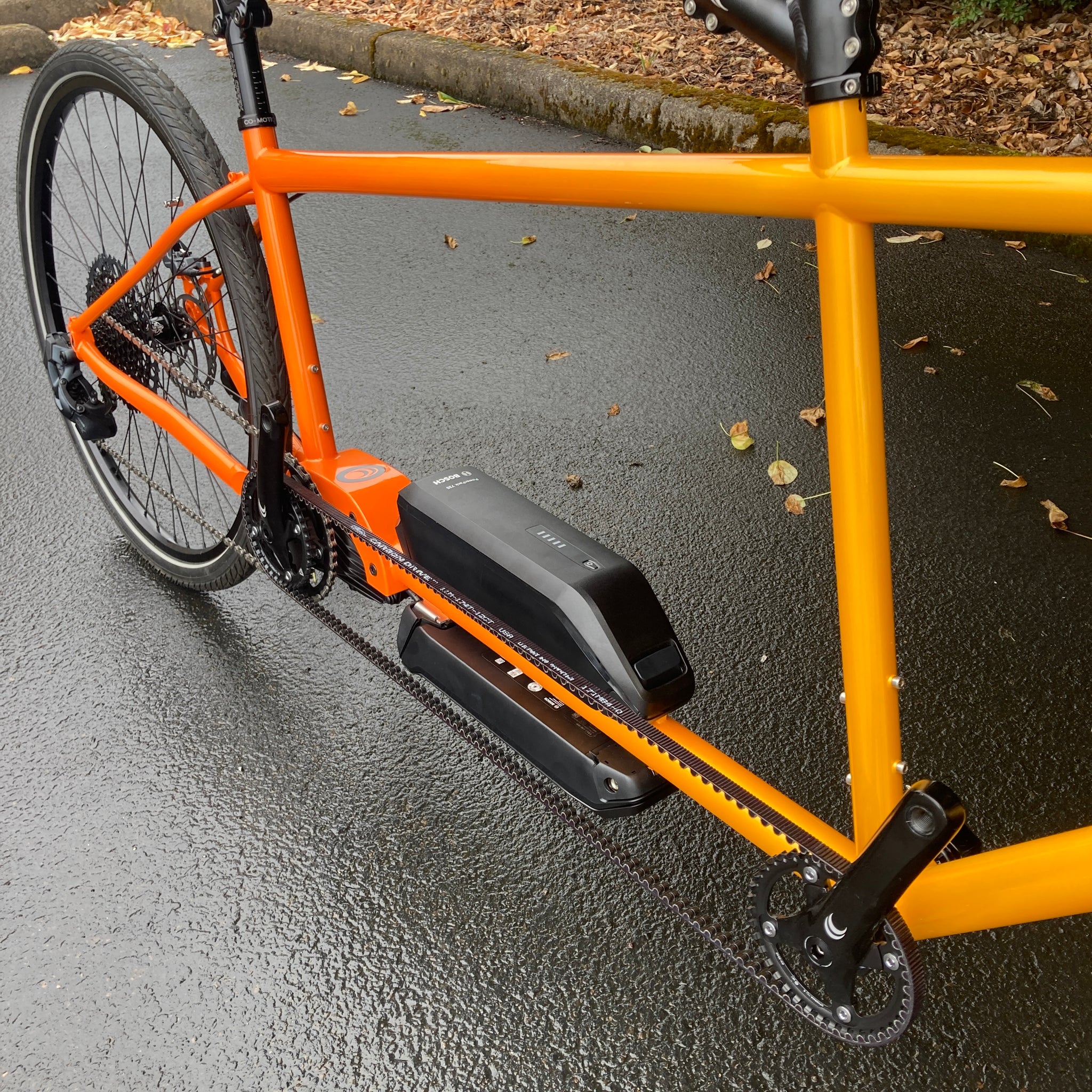

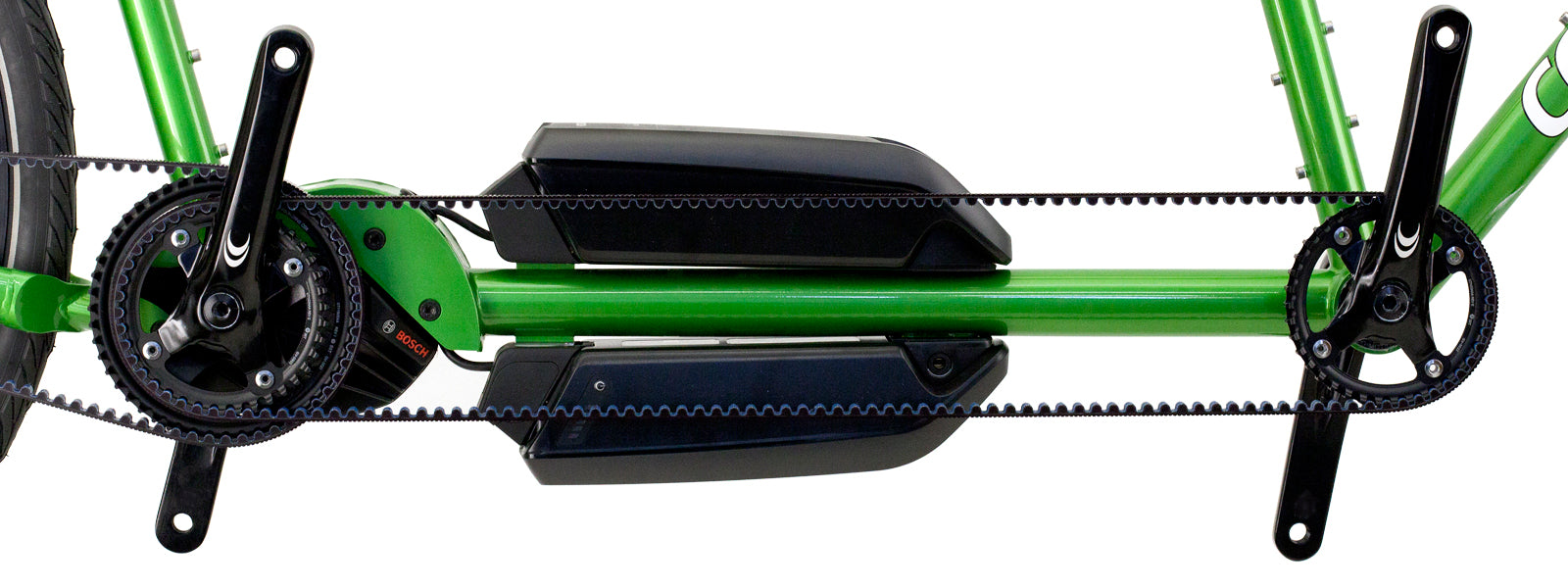

  • Dual batteries = twice the range

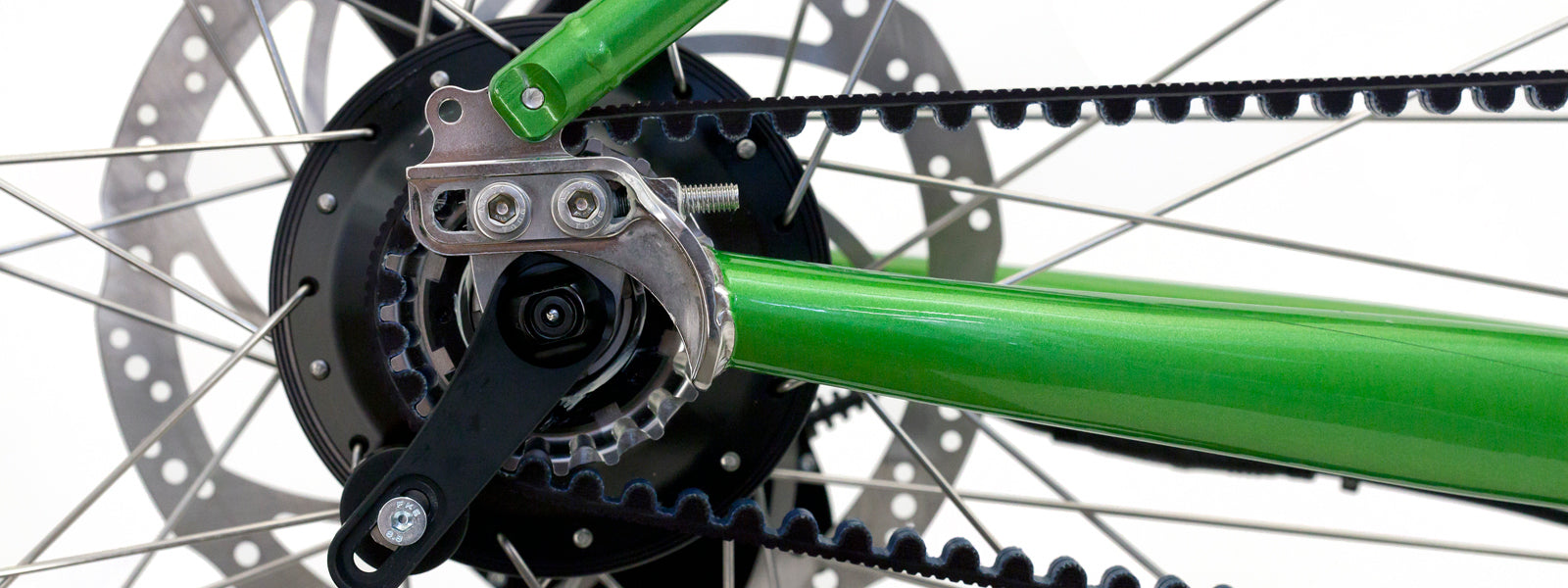

  • Rohloff Speedhub with smooth electronic shifting
  • Electronic-shift intergration designed for e-bike use
  • Class III e-bike with 28mph cut-off
Complete bike starting at $16,295.00
Click here to get your Co-Motion Metolius order started!




Metolius Specifications

Bosch + Rohloff Speedhub Buid Kit
  • Frame: Exclusive super-strength zonally-butted cro-moly e-tandem frame tubing
  • Fork: Co-Motion Boost TA tapered carbon fork

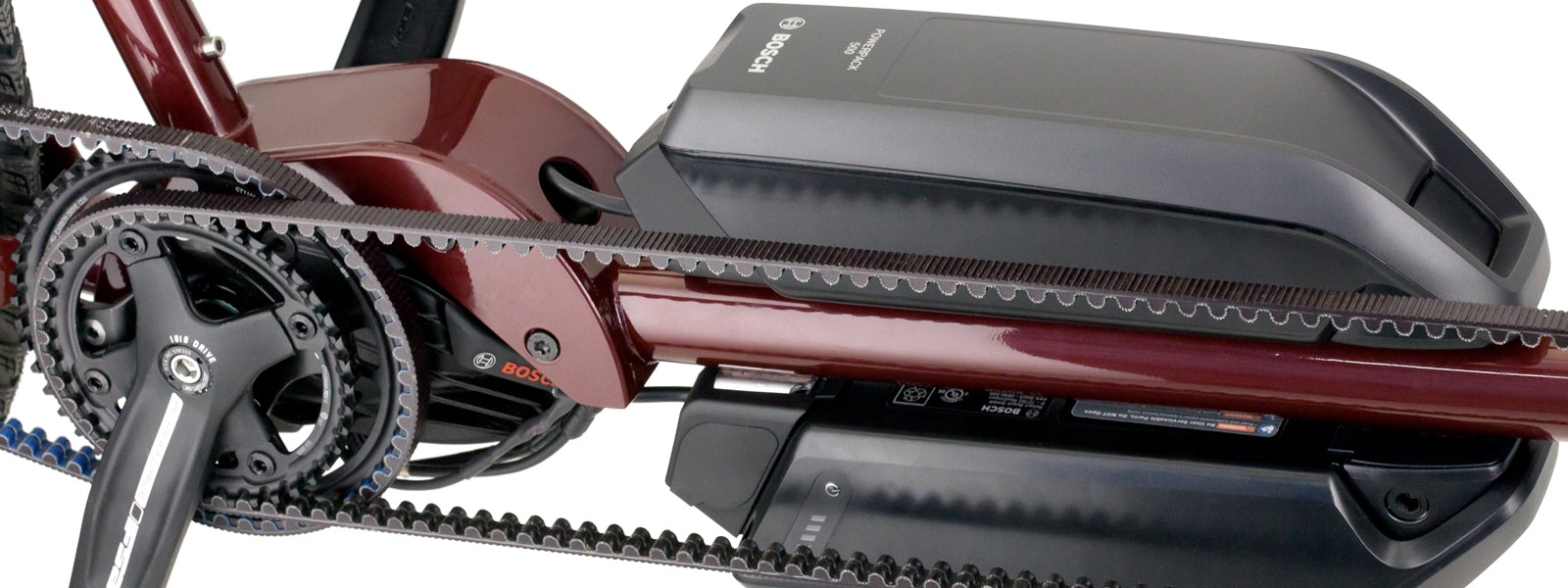

  • Motor: Bosch Cargo Line Speed

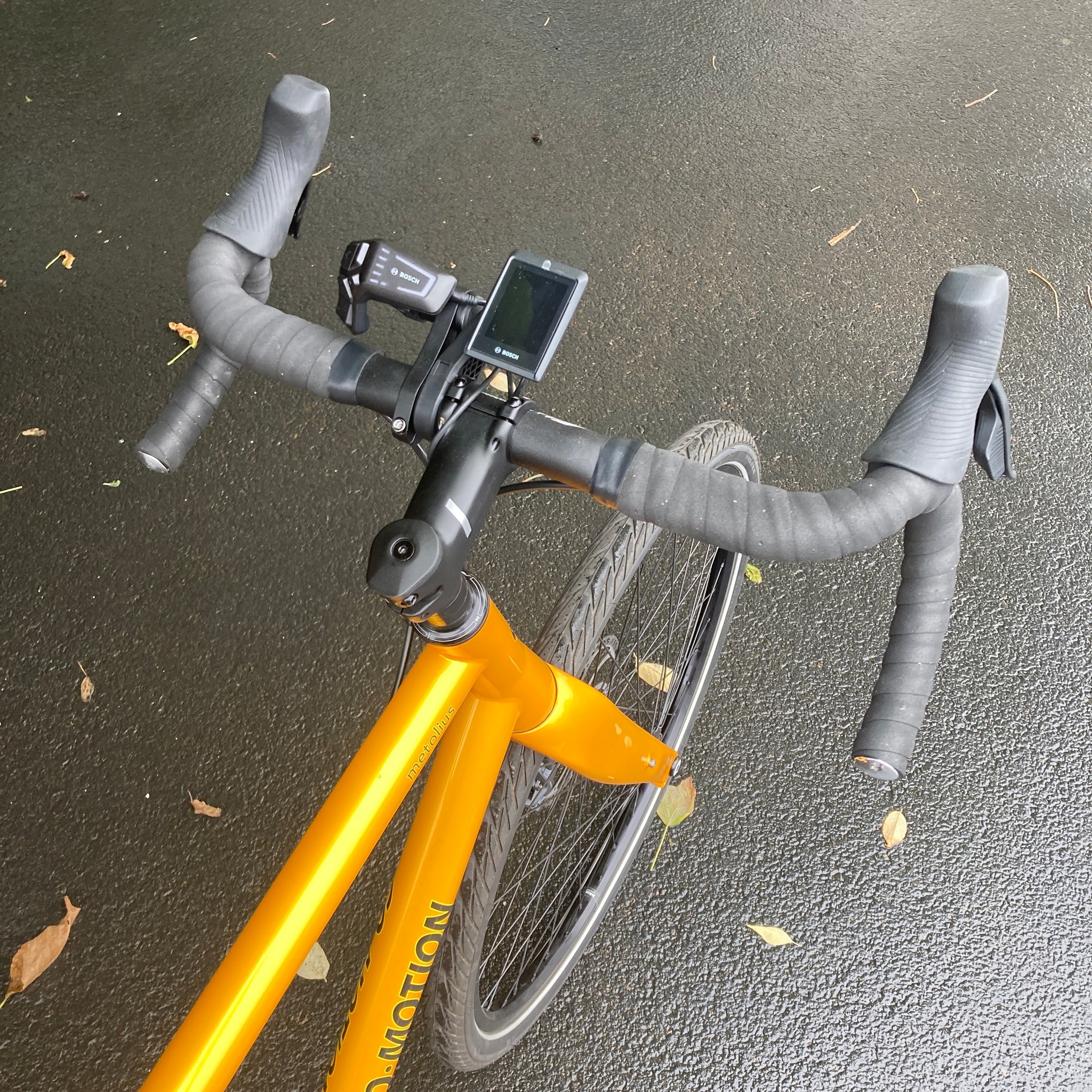

  • Display: Bosch Kiox On-board Computer + Display

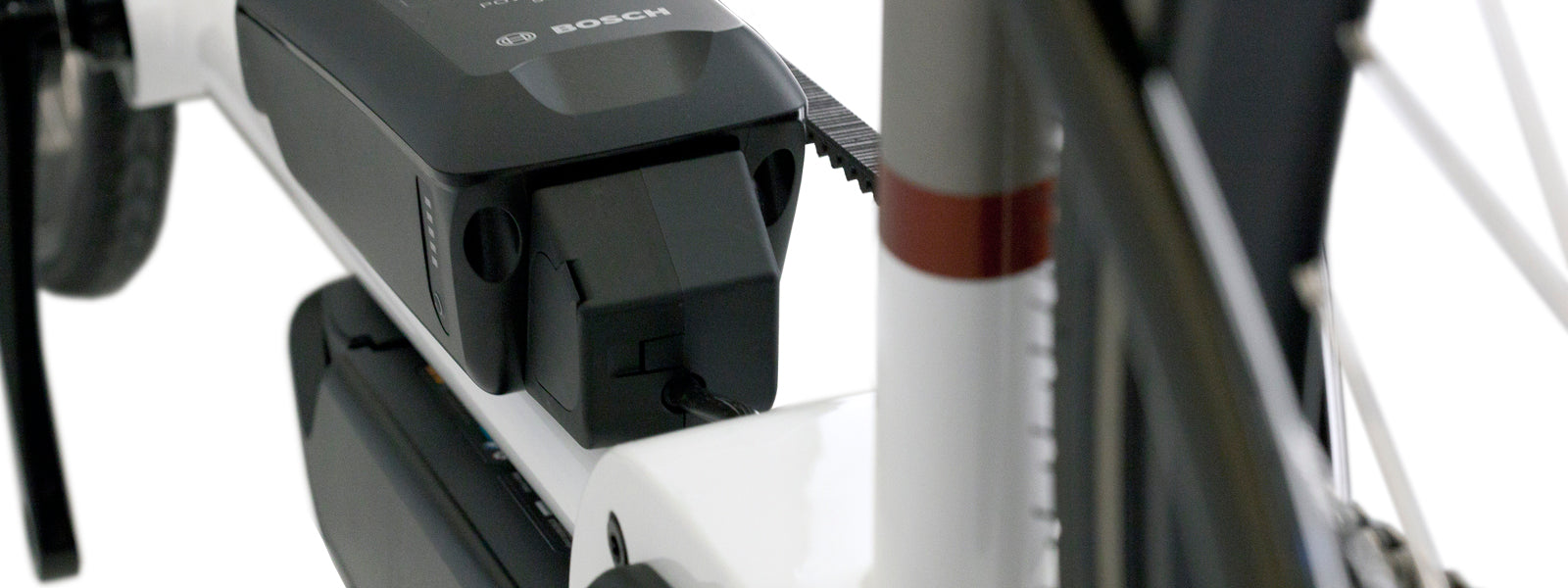

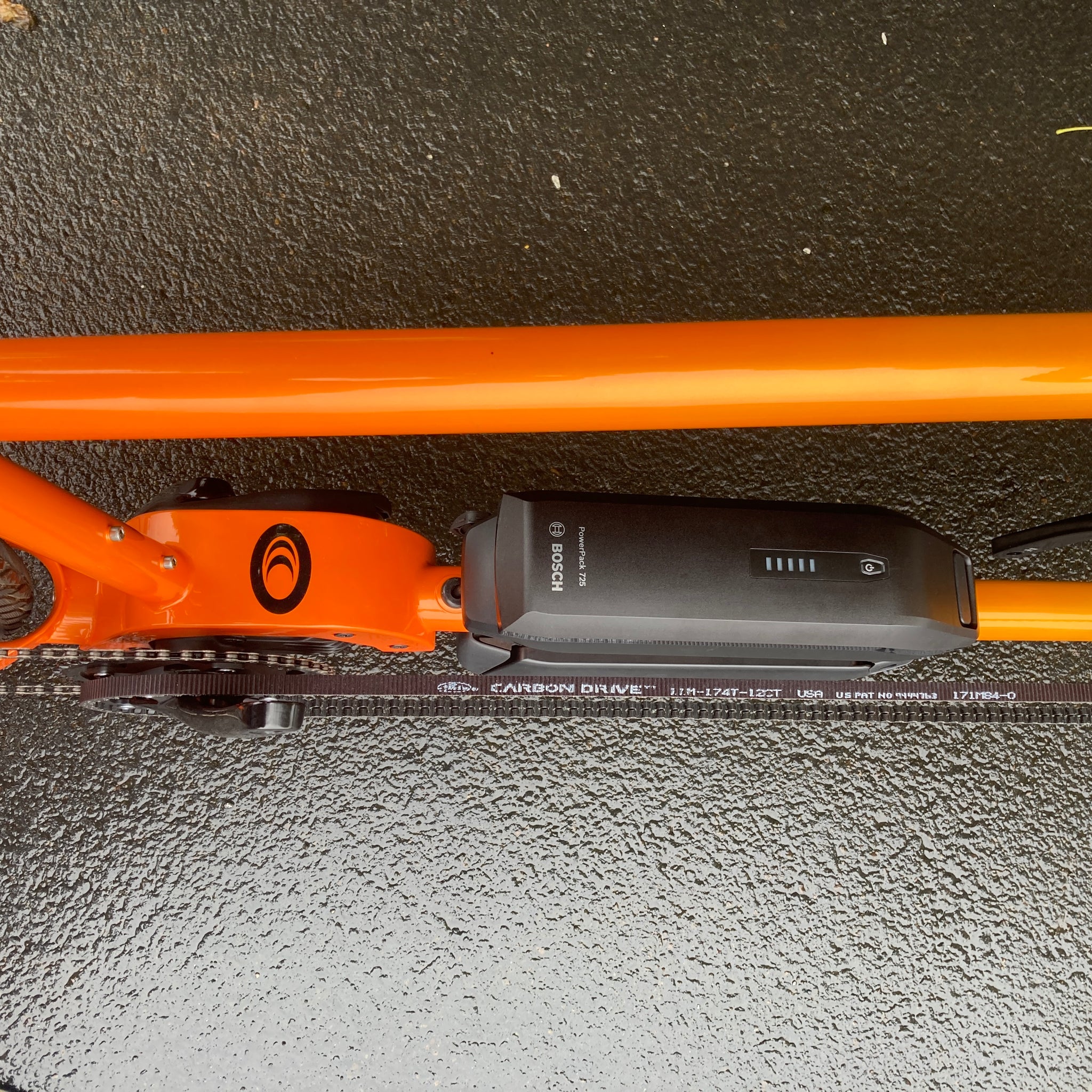

  • Batteries: Dual Bosch Powerpack 500wh

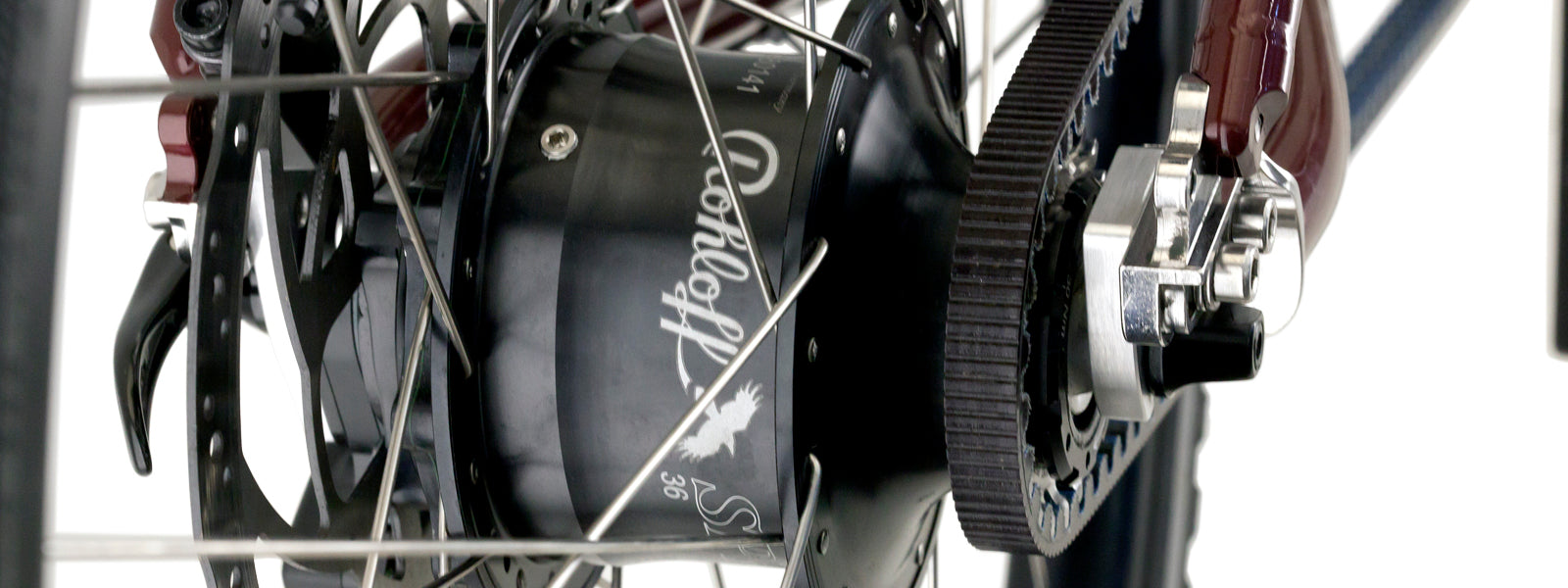

  • Shifters: Electronic Shifting 14-speed Rohloff Speedhub designed for e-bike integration
  • Brakes: Shimano XT 4-piston Hydro Brakes with 203mm Disc
  • Headset: Cane Creek 110 Tapered

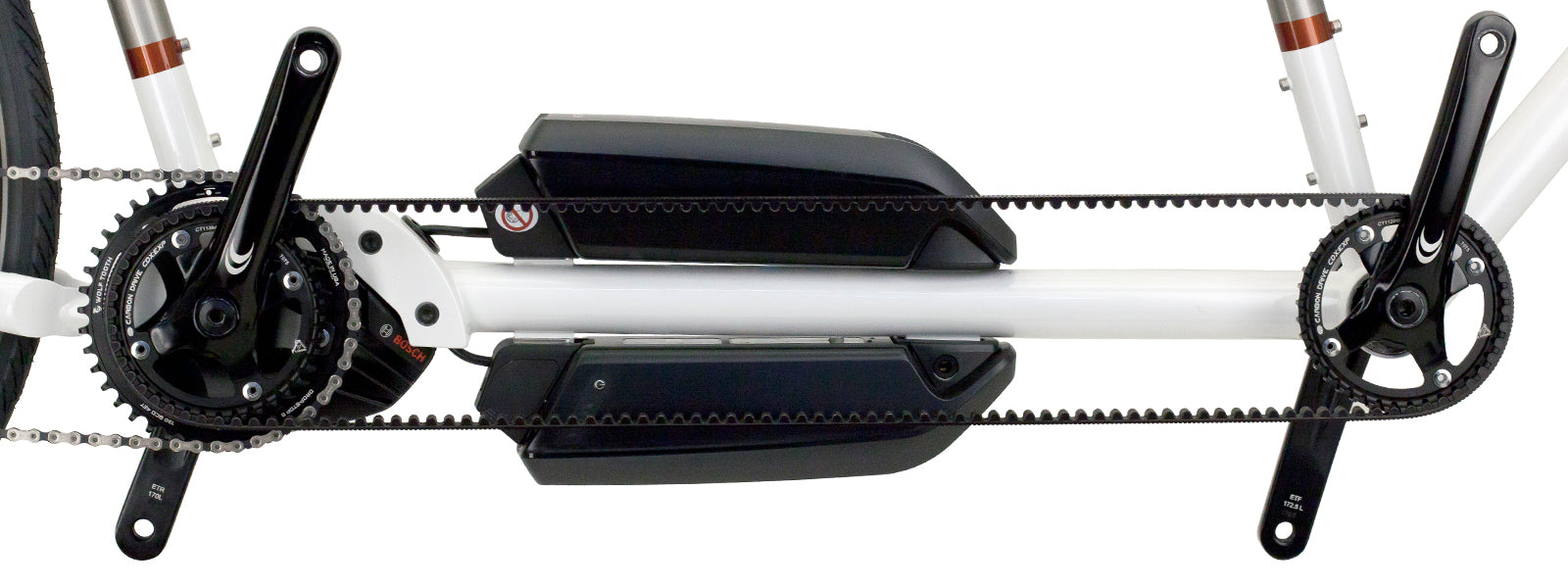

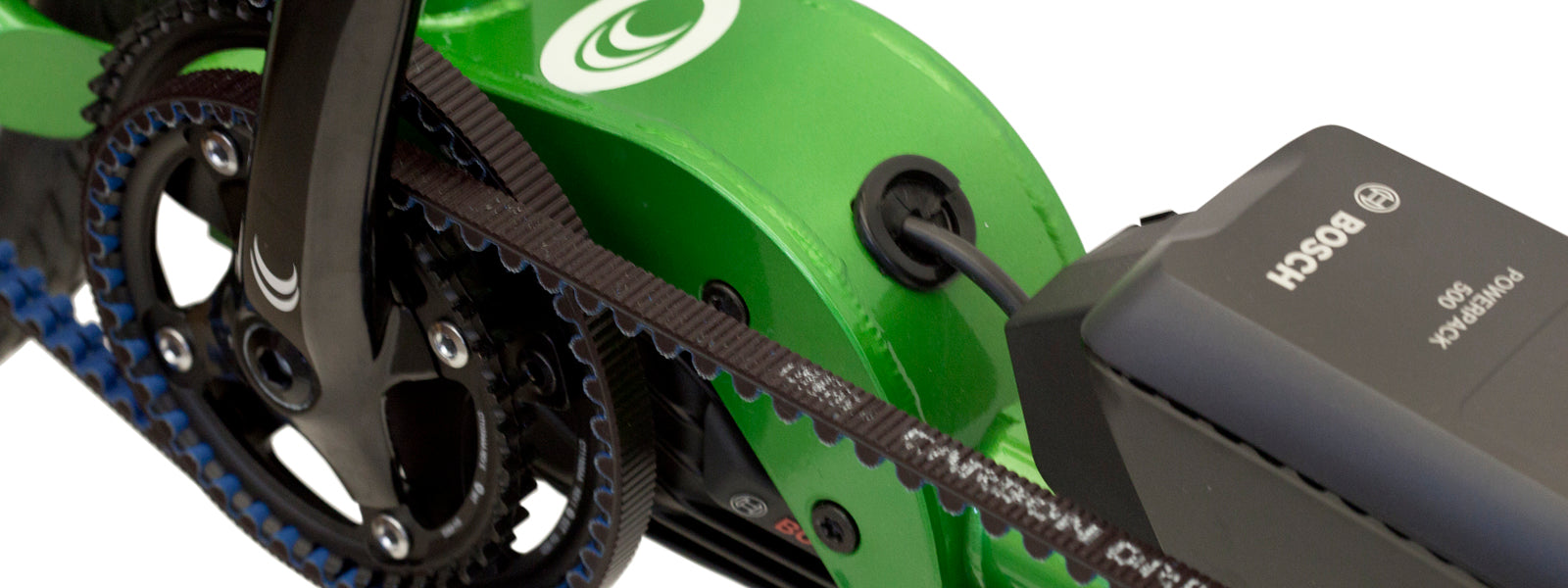

  • Drivetrain: Dual Gates Carbon Drive Belts
  • Cockpit: FSA V-Drive and Co-Motion stoker bar / FSA SL-K and Co-Motion adj. stoker stem
  • Post/Saddle: Co-Motion 31.6mm / Selle Italia Nekkar & Lady Flow
  • Wheels: Rohloff + Co-Motion hubs/ Velocity 700c Rims
  • Tires: Schwalbe e-bike tires 700x37mm

Metolius Geometry Table



Frame Size
A - Captain Top Tube (cm)
B - Captain Seat Tube (cm)
C - Stoker Seat Tube (cm)
D - Head Tube (mm)
E - Chainstay (cm)
F - Seat Tube Angle
G - Fork Span (mm)
H - Head Tube Angle
I - Fork Rake (mm)
J - BB Drop (mm)
K - Capt. Standover (cm)
L - Stoker Standover (cm)
M - Wheelbase (cm)
N - Boom Tube (cm)
O - Stack (mm)
P - Reach (mm)
Small Medium Large Large/Small
54.5 56.5 58.5 59
52 54 56 56
42 44 46 42
145 165 185 205
43.6 43.6 43.6 43.6
74° 73° 73° 73°
396 396 396 396
71° 71° 71° 71°
55 55 55 55
72 72 72 72
76.9 78.0 80.5 80.6
66.9 68.2 70.7 67.4
178.2 179.1 181.2 183.3
74.1 74.1 74.1 74.1
570 589 608 627
382 384 401 399

Custom Paint Options


Opaque Paint Options
Also known as non-metallic, or solid colors, Opaque finishes offer a strong rich color for a classic and traditional look. A timeless paint option for your Co-Motion.



Metallic Paint Options
Tiny metallic or mica particles reflect light and add showroom depth and shine, making your Co-Motion frame stand out with a custom look.



Premium Paint Options
Pearl and Candy finishes add showroom shine or understated elegance.Choose custom combinations to add a distinctive appearance for your Co-Motion.


Decal Choices
Our available decal colors are shown above. These ink-only decals are sealed into your frame between the applied color and the final clearcoat.




Two Color Fade
Fade two colors from Top to Bottom or Front to Back for a unique finish. Choose any two colors from the same swatch of Opaque, Metallic or Pearlescent.



Panels
Painted panels on the seat-tube and down-tube add a classic look to a bike. Choose any Opaque or Metallic paint for the panels and frame/fork color.


TEAM Logos
Our TEAM Logo option is a custom reverse-masking process in which the logos are painted on the frame, as opposed to applied decals, for a bold, colorful appearance




Custom Colors
Can't find the perfect color for your new steed? Don't worry, we can match almost any car color using our Sikkens automotive paint system. Give us a call to discuss options.



Silca Frame Pump
The Impero Ultimate frame pump. This American-made pump fits perfectly under the top tube of your frame and delivers full volume and reliability.

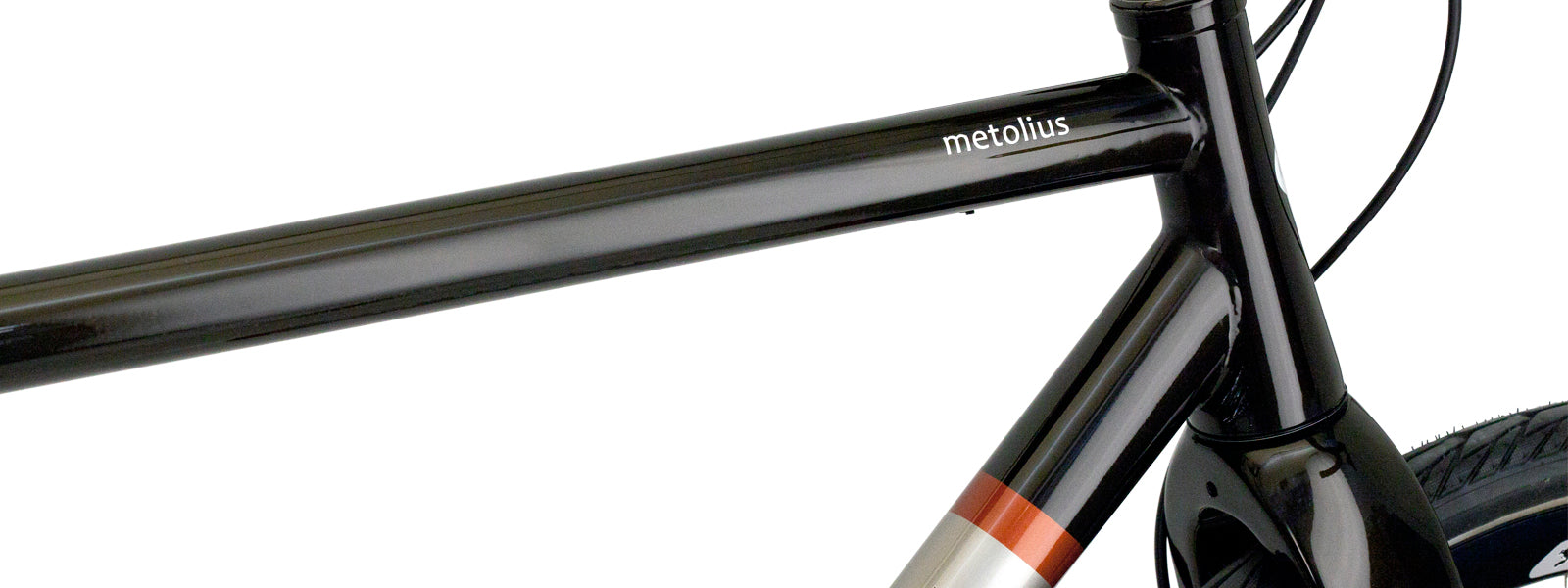

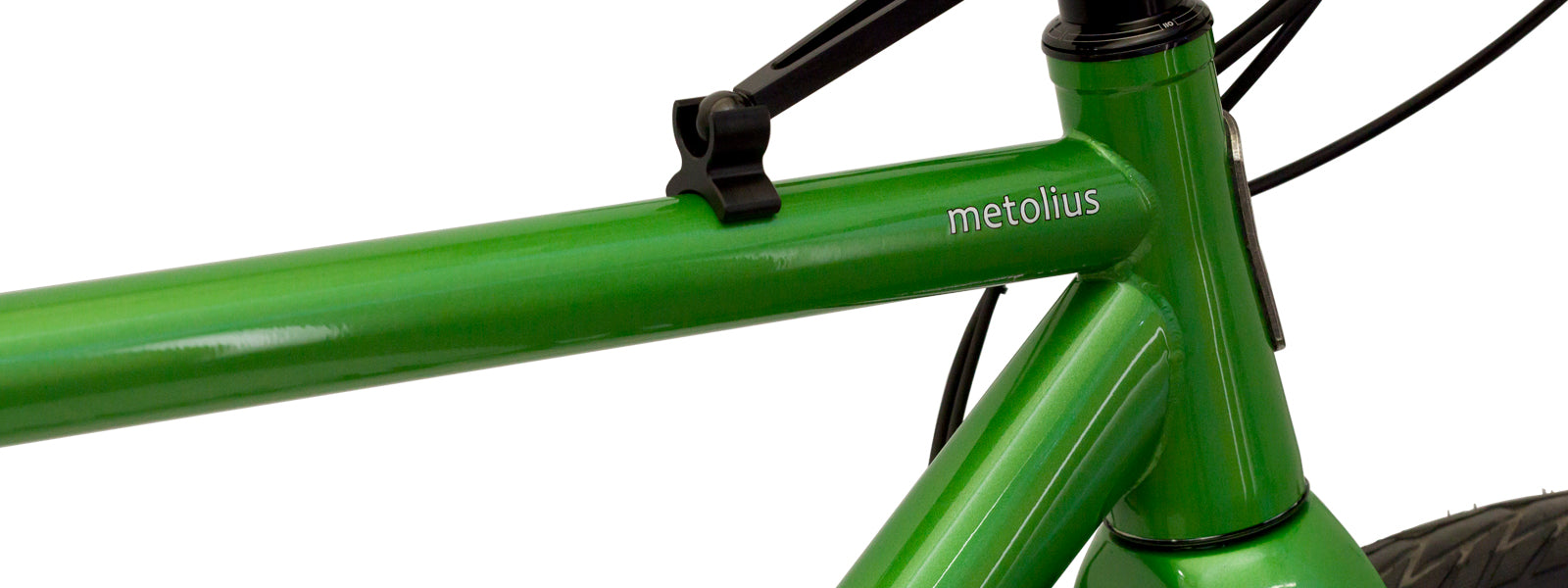

Custom Name Decals
Add custom text like a name, quote or phrase to your bike using Black or White paint. This is a custom reverse masking and will be protected by the clear coats on top.




Accessories & Options


Max Adjust Stoker Stem
We make our Co-Motion Max Adjust Stoker Stem to provide range from shortest to longest extension to maximize the fitting range of your tandem.



Thudbuster ST Seatpost
Provides 33mm of shock absorbing travel to improve the ride for any tandem stoker who may not appreciate an unexpected bump in the road!



Metal Head Tube Badge
Classic Co-Motion logo metal head tube badge. These can be applied to both tapered and straight head tubes. A great classic look for your new bike.
